Basic Boat Info
Engines / Speed
- Make: Yanmar
- Model: 4JH5E
- Fuel: Diesel
- Engine Power: 53hp
- Year: 2011
36 York Street
York, Maine, US, 03909
Builder: Frers & Cibil, Buenos Aires Argentina
Designer: German Frers, Jr.
Minimum Draft: 5'6"
Maximum Draft: 7'6"
Displacement: 21400 lbs
Full Load Ballast: 9050 lbs
Engine Brand: 2011 Yanmar 4JH5E Diesel, 4 cylinder, FWC.
Approximately 830 hours.

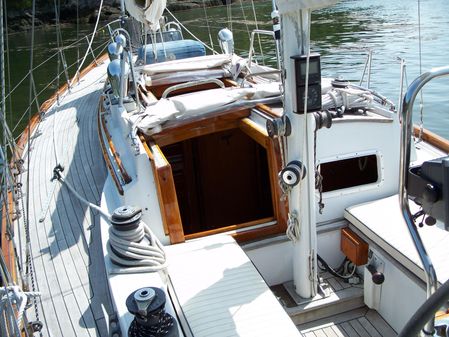

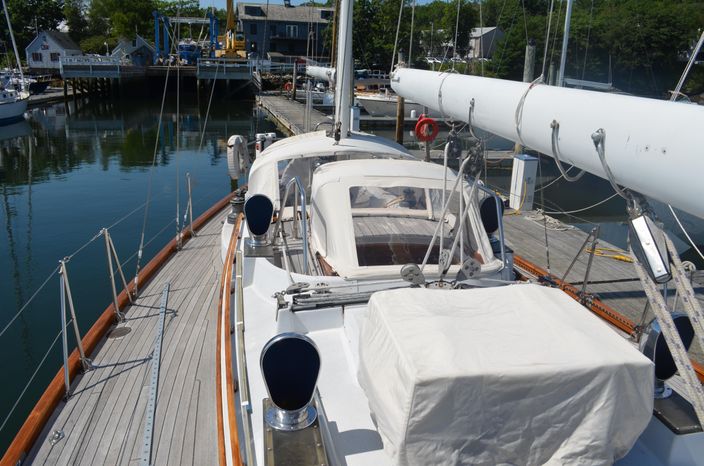

Hull & Deck:

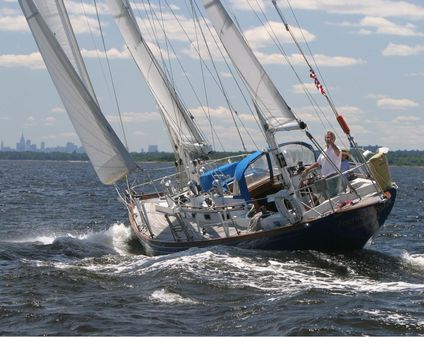

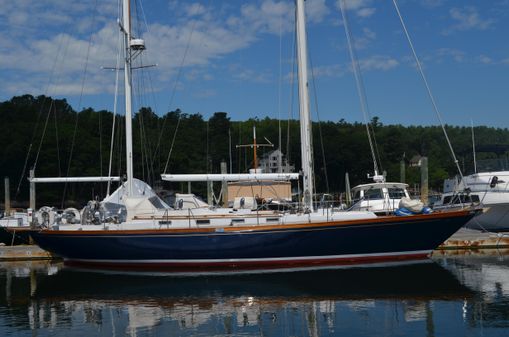

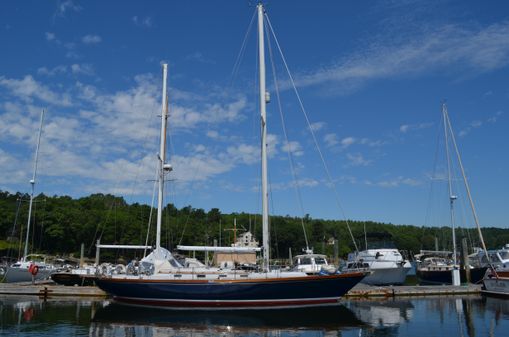

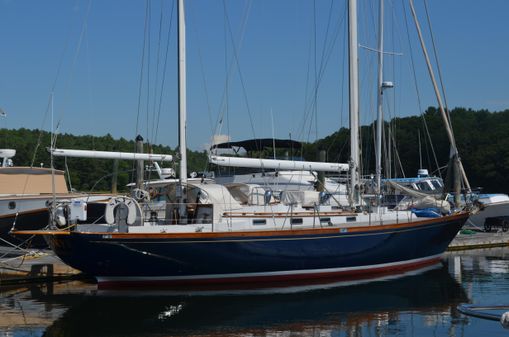

- Racer cruiser with raked stem, tumblehome amidships, traditional transom, aft cockpit.
- Fin keel with centerboard, skeg-mounted fiberglass rudder.
- Fiberglass with Airex-core; hull finished in Dark Blue Awlgrip.
- New centerboard pennant 2011.

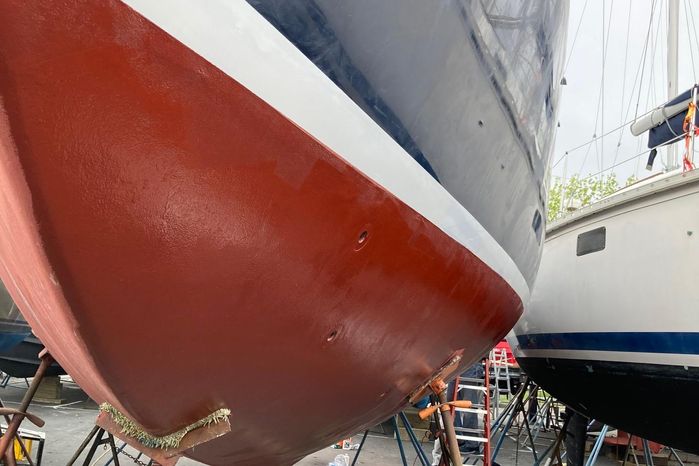

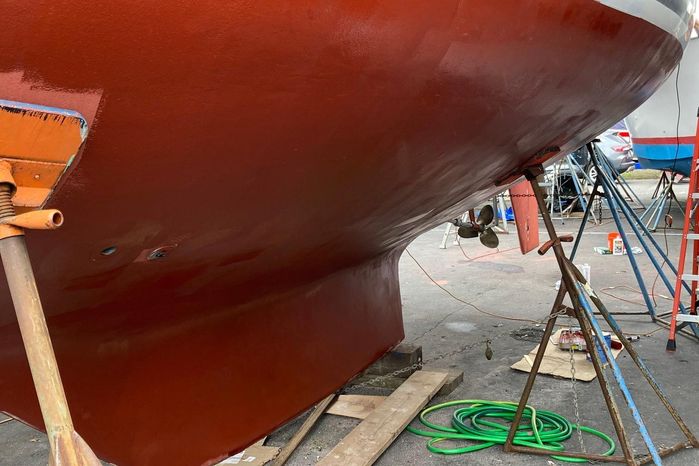

- Ablative bottom paint yearly; bottom barrier coated 11/22.

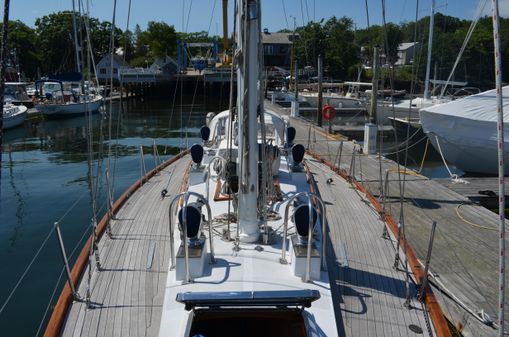

- 1995 Teak decks and cockpit, laid and caulked over fiberglass with core, appear to be in very good condition; Teak toe rail 2011.
- 10 S/S 1 1/4" keel bolts.
- Barient #20 single speed S.T. winch on cabin top to operate fiberglass centerboard.

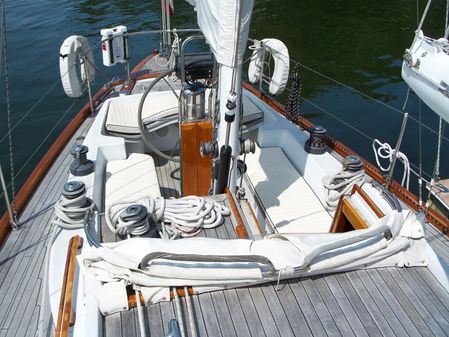

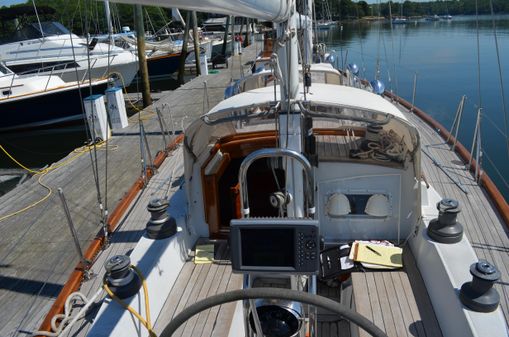

- Pedestal-mounted Destroyer type wheel.
- Closed foam cockpit cushions.
- Outboard engine brackets - with stainless davit.
- Cockpit table.

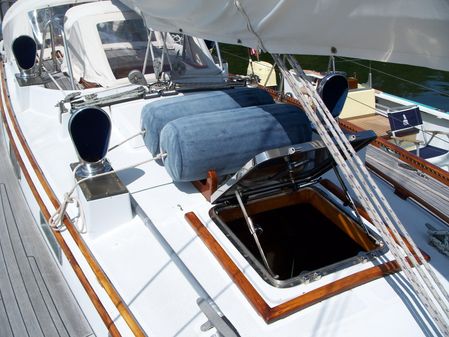

- Stainless/Plexiglas Bomar hatches 2011 forward and main salons.

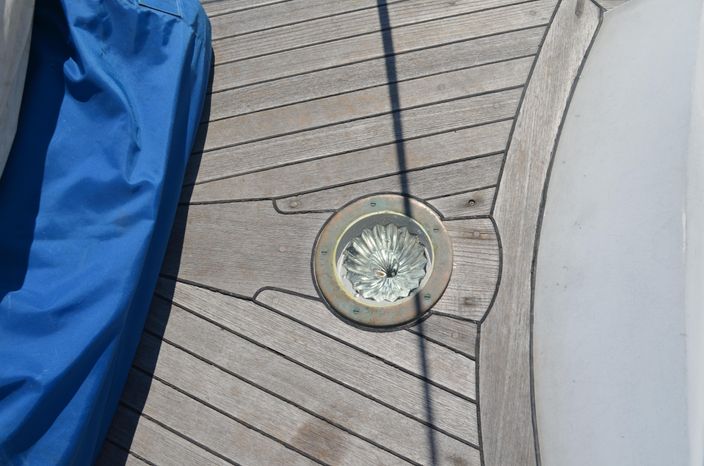

- Bow deck light prism 2018.
- Swimming ladder imbedded in life lines.
- S/S lifelines 2011.
- S/S bow plate.
- Chromed hawse pipes.
- Stainless steel Dorade covers.
- Bronze through-hull seacocks.
- Six S/S opening portlights.
- Two chrome framed hatches with acrylic lenses replaced 2011.

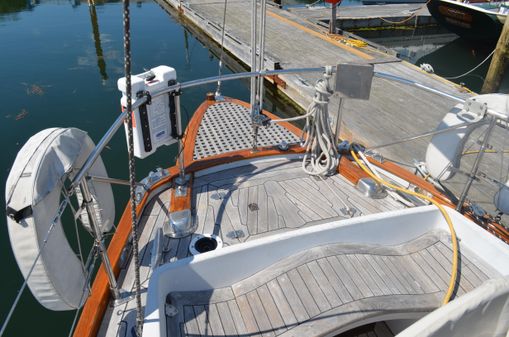

- S/S bow and stern rails and stanchions.
- Double S/S wire lifelines and double gates.
- S/S guardrails at Dorade vents.

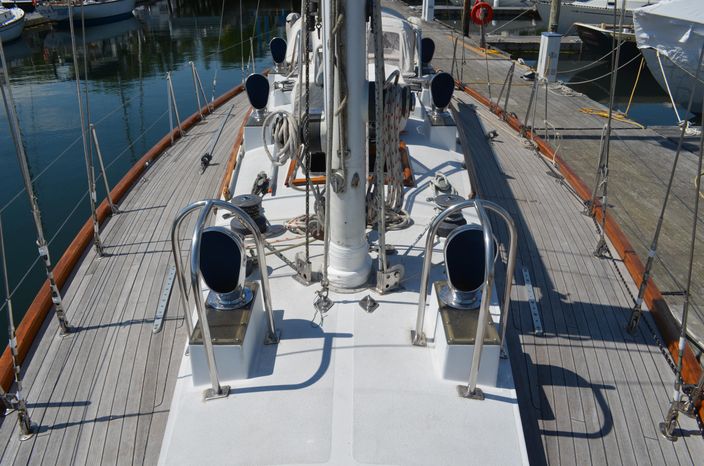

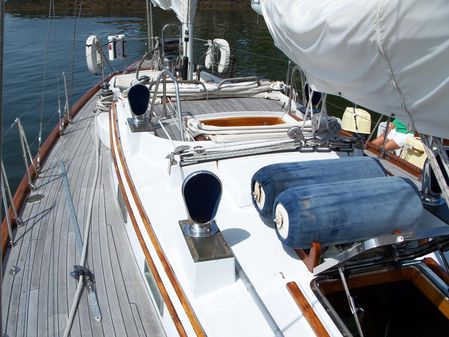

- Six Dorade boxes with chromed ventilators.
- Anchor locker.
Fuel: 44 gallons in two S/S tanks under galley sole.
Water: Approximately 125 gallons in 3 S/S tanks (2-50 gallon tanks under main salon settees; 1-25 gallon tanks under port quarter berth). NOTE: Water tanks have a shut-off connection between the 2-50 gallon tanks; one tank must be shut off or on a tack, water will gravity feed into bilge.
Holding: Approximately 10 gallons in bladder tank under vee berth.
- 2011 Yanmar 4JH5E 53 HP Inboard Diesel; 830 hours (approx.).
- Sauer Danfoss Series 42 engine driven hydraulic motor driving propeller shaft.
- Single lever engine controls.
- Yanmar spare parts valise.
- Diesel fuel fill new hose 2011.
- Closed system fresh water cooling.

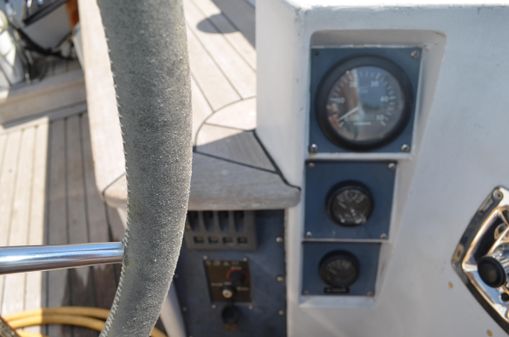

- Tachometer; cooling water temperature and lube oil pressure warning lights.
- Engine driven hydraulic transmission pump (Sauer Danfoss series 42) (new in 2011) and hydraulic motor driving propeller shaft push-pull.
- Engine control: cables; single lever combining gearshift and throttle control.
- New Halon Engine box extinguisher with Xantex shutoff.

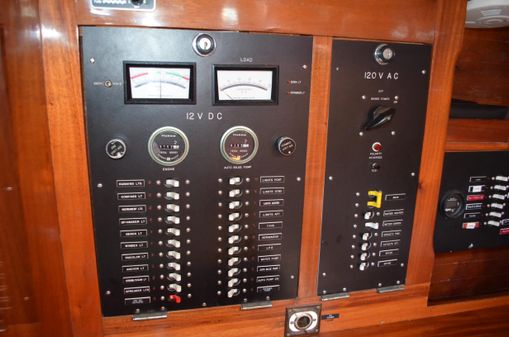

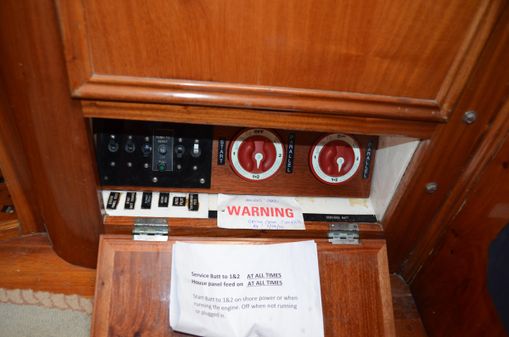

- 12 volt system.
- One starting battery group 27 gel type; 505 CCA; new in May 2012; two gel type house batteries, 150 Ah (new in 2011).
- Statpower True Charge 40 A battery charger.
- Mastervolt 12/350 inverter.
- GFCI protected outlets in heads (with spring loaded protective covers) and galley.
- Two 30 Amps shore power cords.
- Two rule bilge pumps.
- All cabin lights converted to LED.
- AC outlets for shore power in aft cabin, aft head, galley and salon.
- Sony MP3/WMA/AAC stereo with two speakers in main salon and two waterproof Bose speakers in cockpit.
- NMEA2000/USB interface.
- 30A solar panel.
- Superb joinery.
- Classic interior.
- Interior South American Hardwood (Viraro and Cedro).
- Gimballed dining table seats six.
- Storage in table.
- Double standard aft bunk (starboard).
- Single standard aft bunk (port).

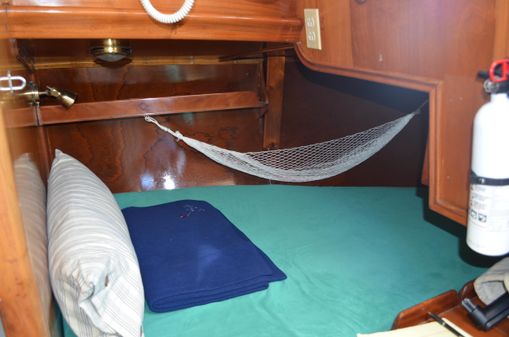

- Vee Berth forward with insert and cushion.

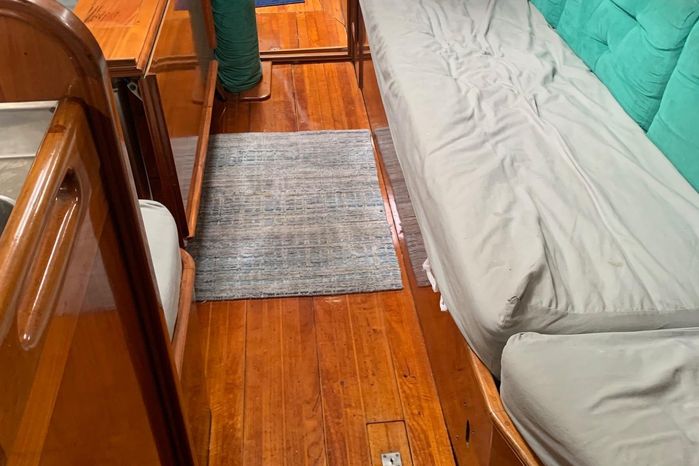

- Dining settee and salon settee bunks.
- Three cabins; aft with head, main salon, forward with head.
- Two heads with sink and hand held shower.
- Fitted bunk sheets and blankets aft stateroom.
- Fitted sheets top and bottom Vee bunk.
- All Bunk bedspreads.
- Classic nav station.
- New foam and memory foam cushions 2006-8.
- All the comforts of home; hot cold water, refrigerator, freezer, liquor cabinet, TV.
- Wall mounted oil lamps.
- Portlight mosquito screens.
- Forward hatch screen.
- Main Salon hatch screen.
- Main companionway screen.
- Aft companionway screen.

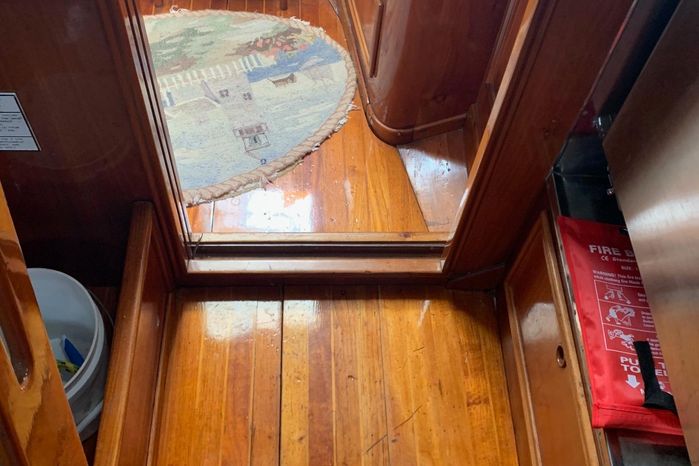

- Floor board varnished 2022.
- Technautic reefer and freezer, new control units 2011, 2015.
- Hot/Cold pressure water.

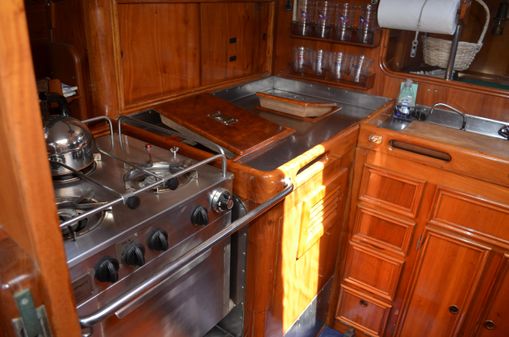

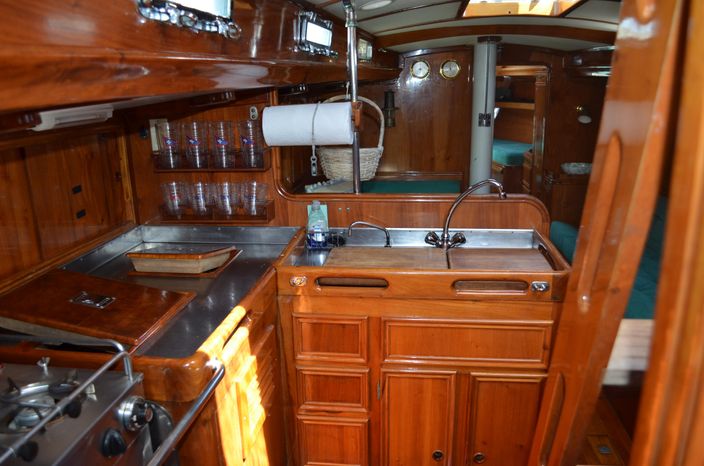

- Three burner Shipmate stove with oven.
- Double Stainless Steel sink.
- Hardwood laminated cutting boards/sink tops.
- Stainless steel counter with varnished wood reefer tops.
- Liquor cabinet wine glass storage port side.
- Cutlery drawers.
- Dining plate racks.
- Three water tanks 125 gallons total capacity.
- 2022 Hot water heater 5 gallon.

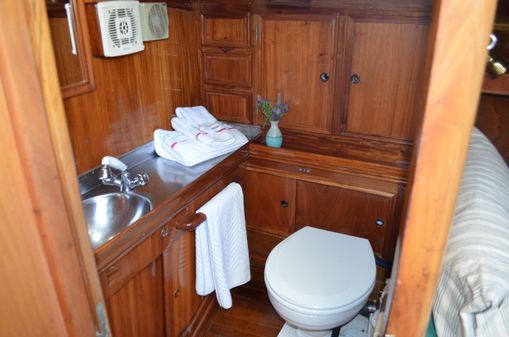

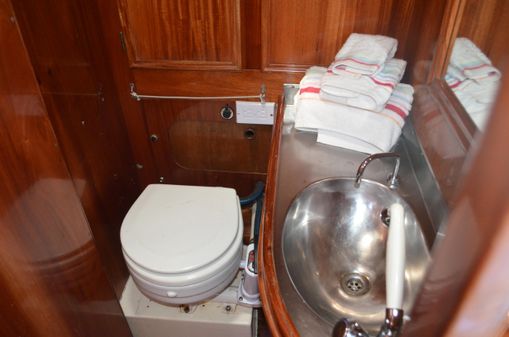

- Two heads with standard marine toilets.
- New sanitation hoses 2016.
- Whale gusher auto sensor gray water sump pump.
- Holding tanks with Y valves.
- Macerator in forward head.
- Stainless steel vanity tops with stainless sinks.
- Hand held shower in both.
- Two thirteen gal tank lockers under helm seat
- Sentry 415 gas detector
- Solenoid valve with control panel in galley
- Regulator with pressure gauge
- Flexible gas rated hoses and copper tubing

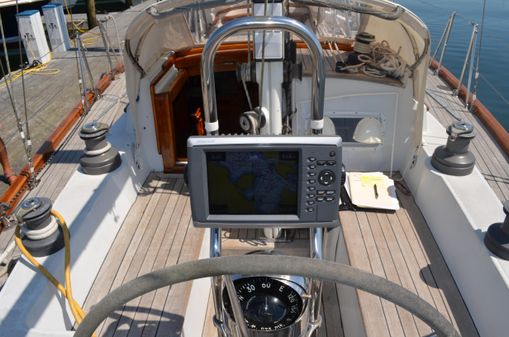

- Garmin 6208 GPS with helm chart plotter.

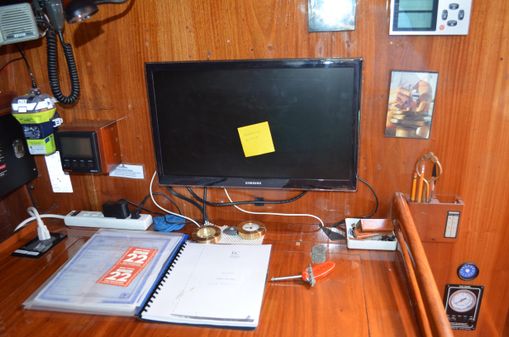

- 19” Samsung TV remote chart plotter slave at nav station.
- Auto helm wind speed and direction.
- Auto helm depth sounder.
- Garmin Radar antenna 18” HD Radome on mizzen.
- Richie electronic compass at nav station.
- 5” Danforth Constellation spherical magnetic steering compass in binnacle.
- Navigation lights: side lights, LED masthead light, stern light, anchor light, tri-color masthead light, mizzen spreader lights.

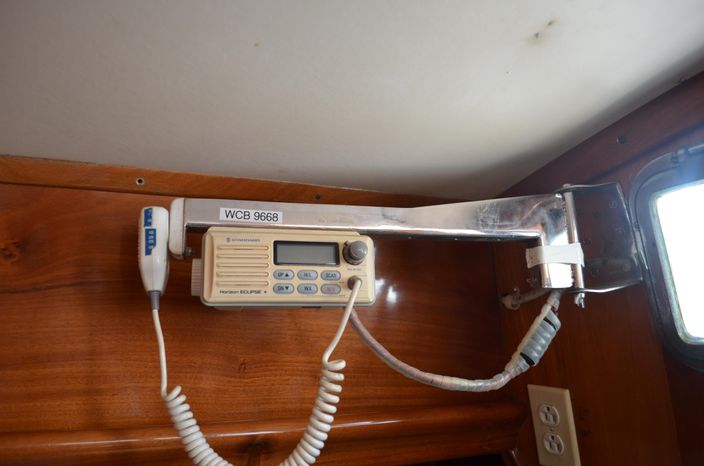

- VHF (2) Standard Horizon & Icom C80.
Sails and Rigging:

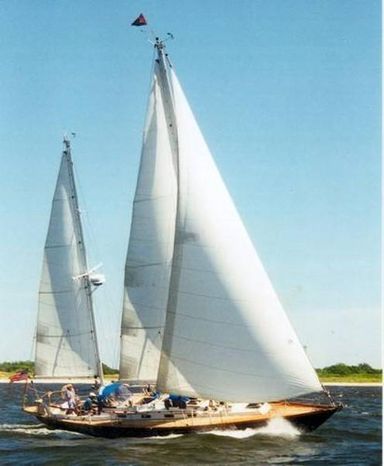

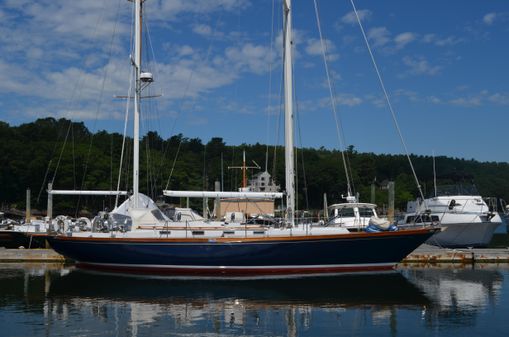

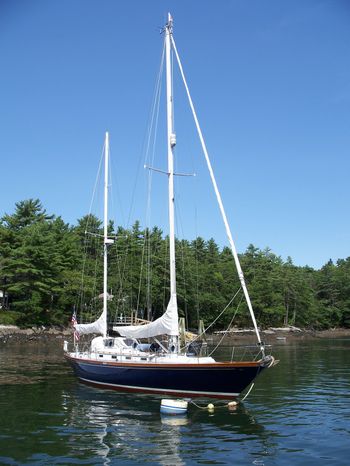

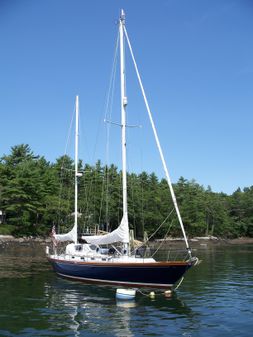

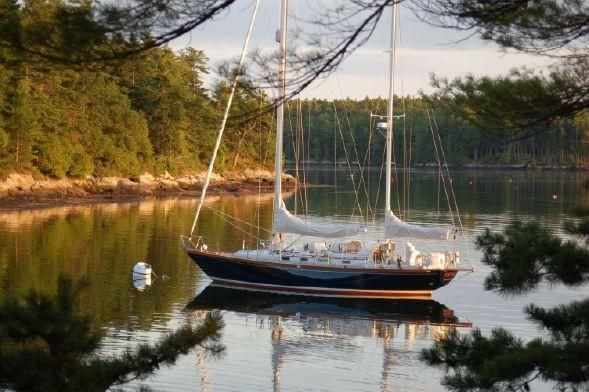

- Easy to use ketch rig for shorthanded sailing.
- Furling genoa - 160% Hathaway 2006, 150% North 2001.

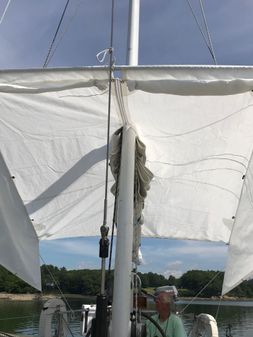

- Fully battened mizzen and mainsail North 2001.
- Strong Sail Track and Slide system.
- Strong Sail Track Batten cars.
- Tri-radial cruising spinnaker Hathaway 2006.
- Mizzen staysail North 2001.
- Storm sails.
- Gale rider storm jib.
- Standing rigging inspected 2023.
- Chain Plates rebuilt and rebedded 2011.
- Vang block and tackle.
- Aluminum boom hung Preventer.
- Profurl Jib roller furler.

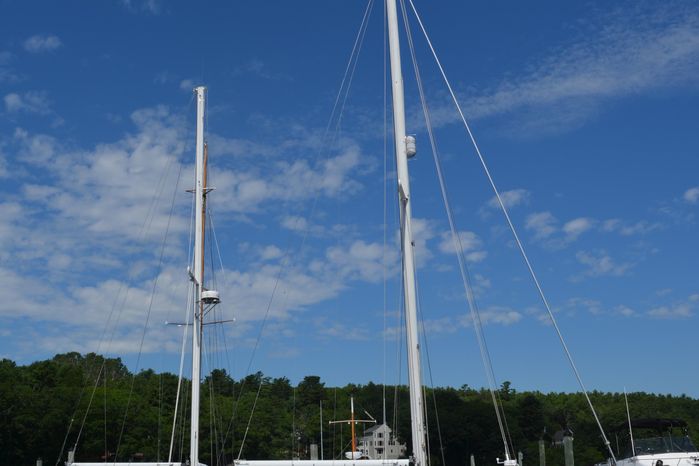

- Aluminum main and mizzen masts and boom.
- Mainmast keel stepped.
- Mizzen stepped on cockpit sole.

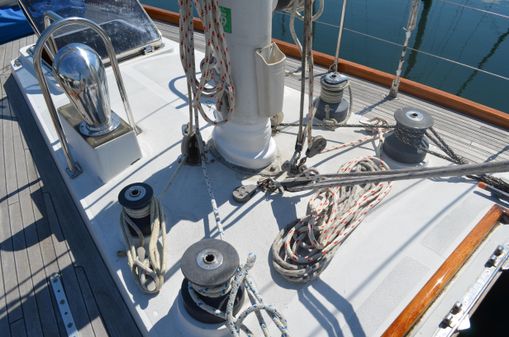

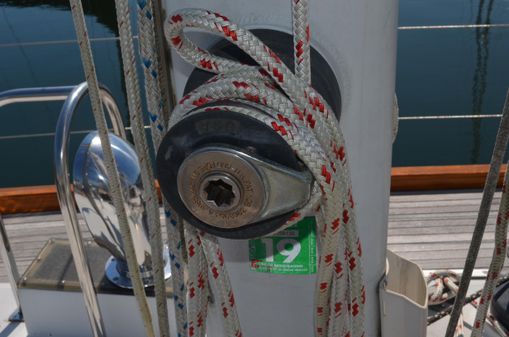

Winches: (All serviced 2022)
- Two Barient 28, 2-speed, ST primaries in cockpit.
- Two Barient 27, 2-speed, ST secondaries in cockpit.
- One Barient 23, 2-speed, ST on aft end of cabin trunk.
- One Barient 23, 2-speed, ST on main mast.
- One Barient 20, 2-speed, ST on main mast.
- Three Barient 10, single speed on mizzen mast.
- Two Barient 26, single speed on forward cabin trunk.
- One Barient 21, 2-speed on forward cabin trunk.
- One Barient 24, 2-speed, ST on forward cabin trunk.
- Aluminum Danforth style lunch hook.

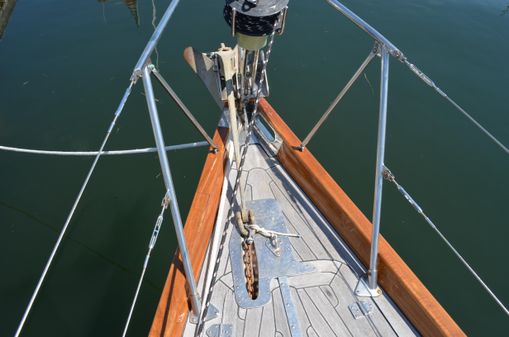

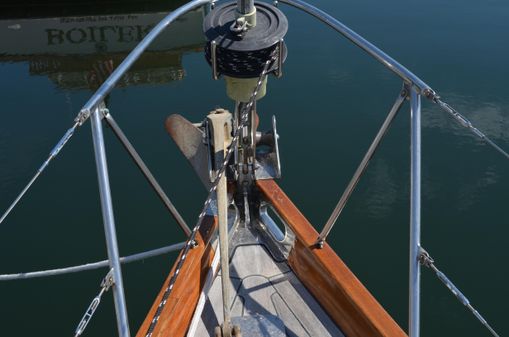

- Electric 12V Simpson Lawrence Seawolf windlass with chain gypsy and warping head, operated by foot switch.
- 45 lb CQR w/125’ 3/8’ chain.
- 25 lb spare CQR w/150’ ¾’ Samson Braid rode.
- 12V salt water wash-down.
- Personal Flotation Devices: two adult inflatable USCG Type II; six adult USCG Type V with integral harnesses.
- Horse shoe: two USCG approved types.
- MOB module: Switlick MOM8A.
- Heaving Line in aft locker.
- New 2022 Eight man Avon life raft.
- Stainless steel wire jack lines.
- Distress flag.
- West Marine 12V search light.
- Weems and Plath Electronic Flare (Beacon).
- ACR 406 MHz EPIRB registered 2020.
- New 2022 Radar reflector mounted on main mast.
- First Aid kit in aft head.
- Misc. safety harnesses.
- Man overboard automatic strobe light and hanger.
- Whale gusher emergency pumps (2).

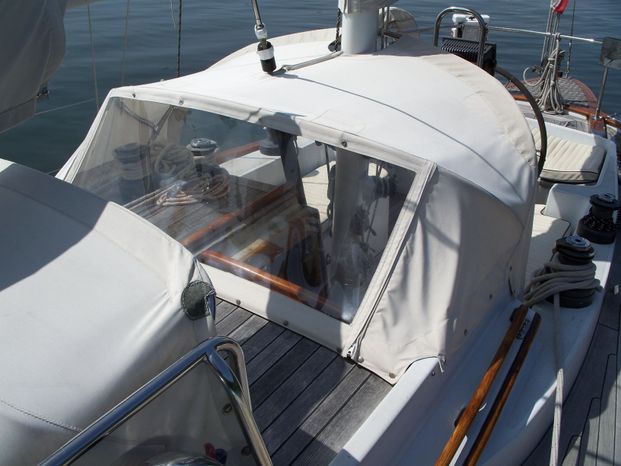

- Forward dodger (2023) on stainless tubing.
- Aft dodger (2009) on stainless steel tubing.
- Mainsail and mizzen covers (2023).
- Steering pedestal cover (2011).
- Life raft cover (2022).
- Bosun’s chair.
- Cockpit awning (2009), Dacron with stainless steel frame.
- 6' Pig stick.
- Fairclough winter cover with frame (2011).
- Canvas winter bunk storage covers.
