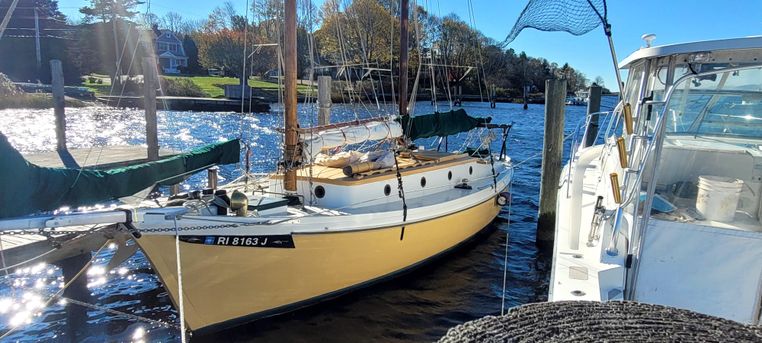

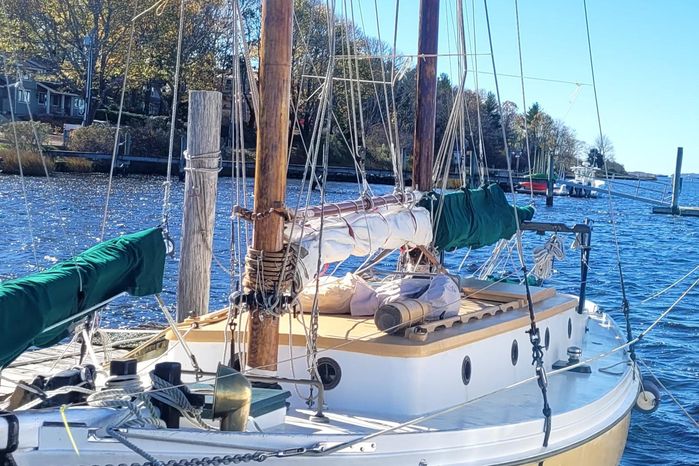

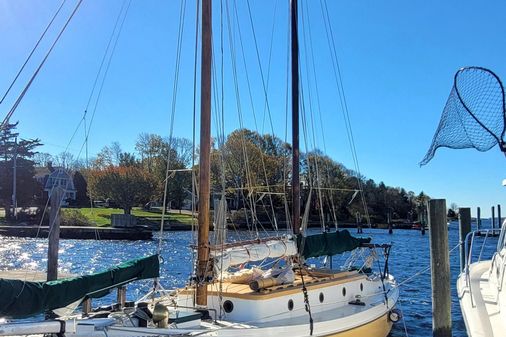

1957 Atkin Gaff Rigged Schooner(Design 775)

SOME HIGHLIGHTS

• This boat was built in 1957 by Ray's Classic Boat Shop, Greenport, NY. The last of its kind built there and has done many races in its day.
• This boat was built from William Atkin design #775. William Atkin's drawings have been donated to Mystic Seaport Museum.
• This boat is registered on the American Schooner Association.

A major restoration was done at Avondale Boatyard in Westerly, RI in 2017-2018 including:

• White oak sawn frames were replaced and ten 3" floor timbers all fastened with bronze bolts.
• The lower planking was removed and replaced with new Atlantic white cedar (3 planks up from garboards).
• New stem above waterline.
• Bronze keel bolts were tapped into the lead keel.
• New deck - 2 1/2" layers of mahogany marine plywood with epoxied fiberglass cloth.
• Planks were refastened with bronze screws.

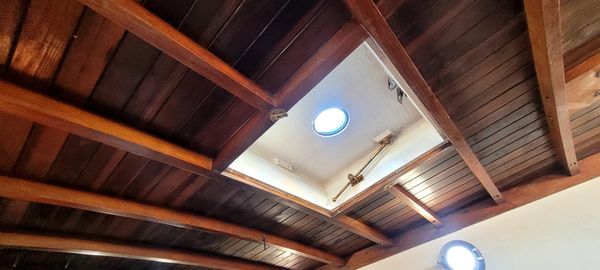

• Cabin top was removed and replaced after new deck beams and decking were replaced.
• The mast steps were refitted with bronze bolts and 3/8" S/S plates.
• The diesel engine was rebuilt in 2012 (approximately 200 hours since rebuilt).

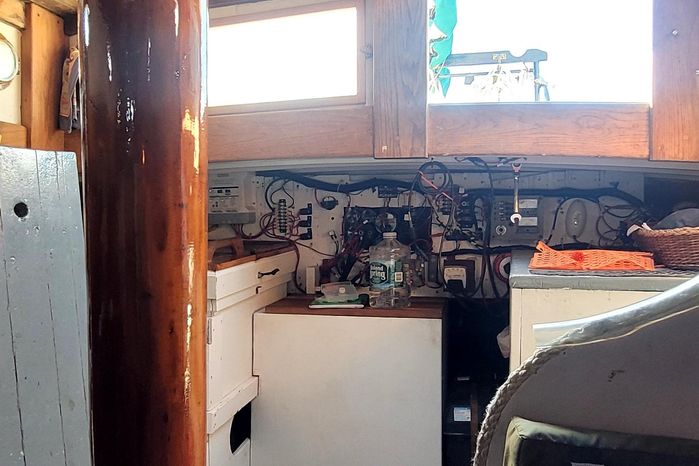

• The electrical panel has been updated - S/S rigging; Sitka spruce varnished spars.
• All rigging has been updated.

EQUIPMENT LIST:

• 35 LB CQR anchor; second Danforth anchor.

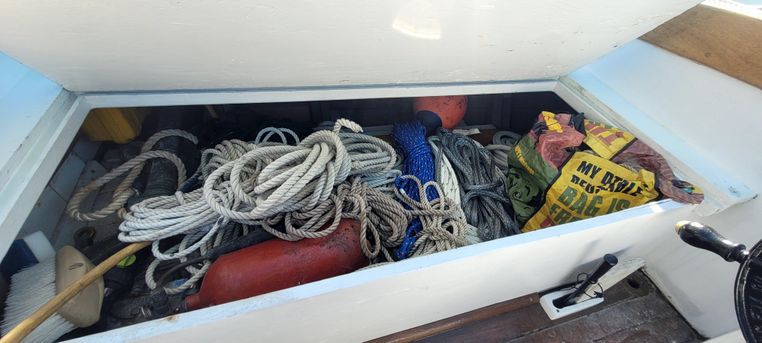

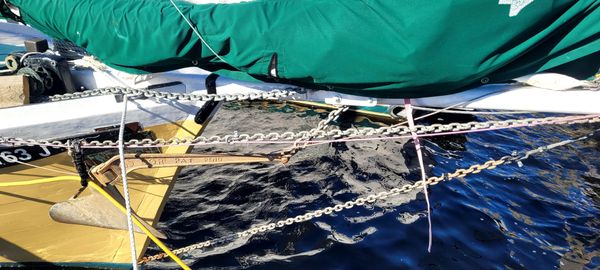

• 135' of 3/8" chain, 2018; 20' 3/8" chain; 200' rode; 150' 1/2" rode converted to mast self climbing assembly.

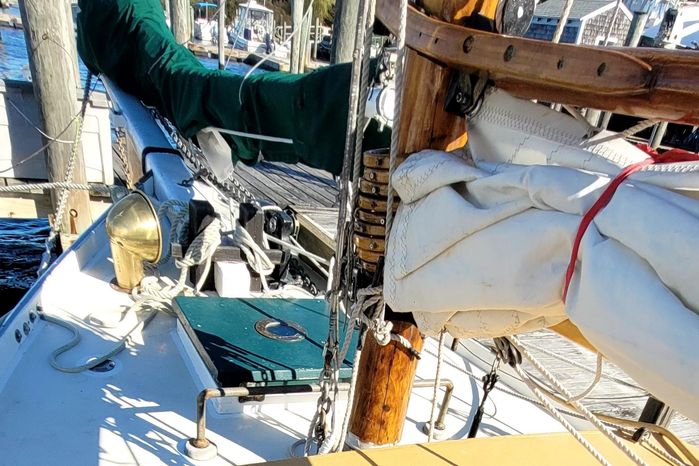

• Simpson Lawrence Seatiger 555 windlass.

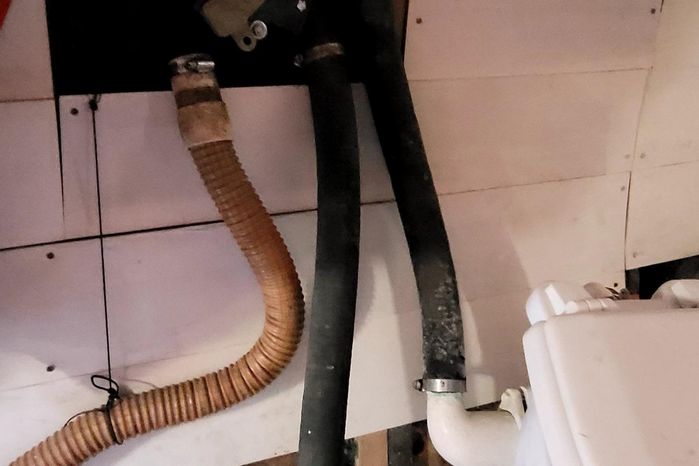

• Waste water 22 gallon S/S tank, Groco "Sweettank" Aerator, hi level indicator and pump; foot pump at galley sink.
• Wilcox Crittenden "Skipper" head.
• 2018 100-liter drinking water bladder.

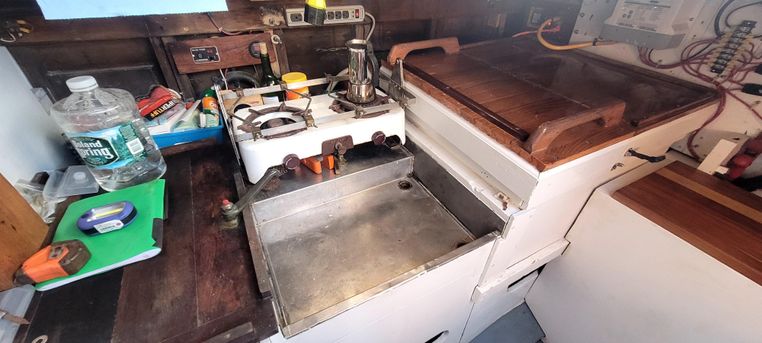

• 2 burner kerosene Force 10 stove.
• 12,000 BTU diesel hot air heater, (Webasto heater).
• B&G Zeus 7" MFD marine Map-GPS system, 2018.

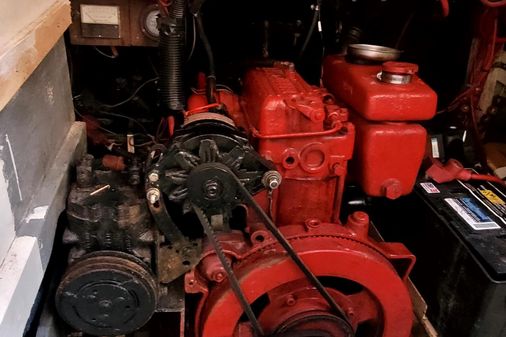

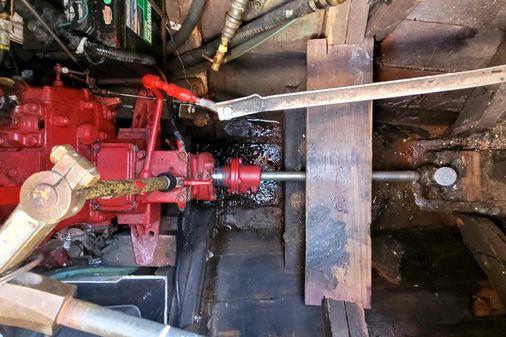

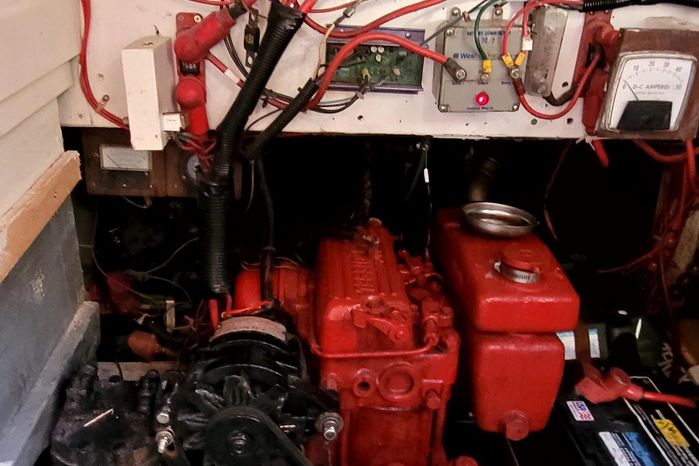

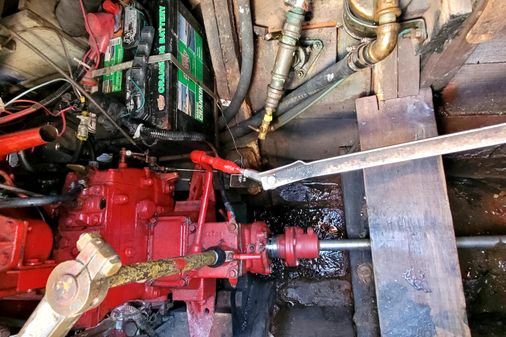

• 1972 Sabb 2H 18hp diesel engine, FWC; 2010 new rings, cylinder sleeves and valve job; 2019 new heat exchanger.
• Racor fuel filter.
• 757 engine hours.
• Sabb feathering forward-reverse prop.

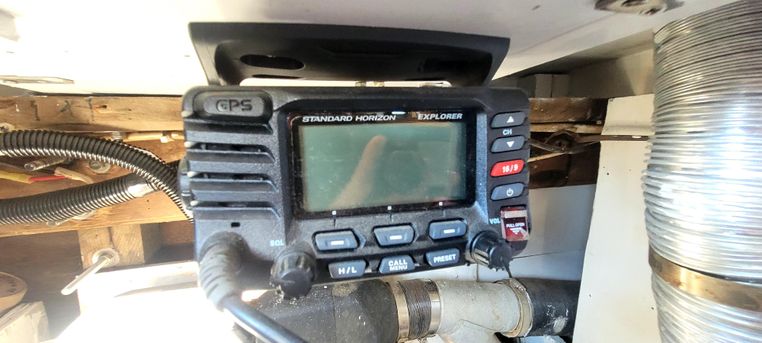

• 2018 Standard Horizon Explorer GX1700 marine radio.

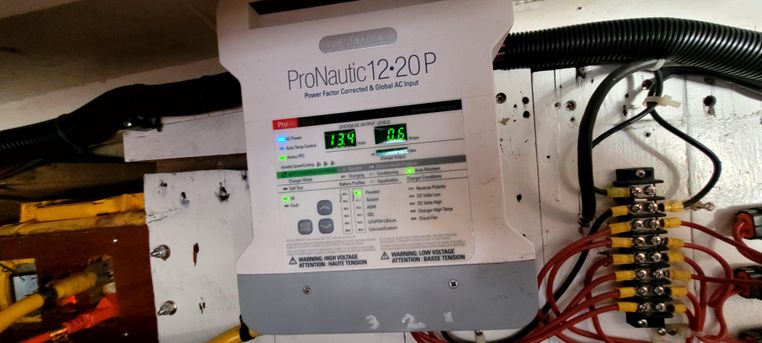

• 2019 Promarine Pronautic P Series 20 amp, 3 banks battery charger.
• 2014 Micronet wind meter Tacktick wireless.
• 2002 Raymarine ST60 depth.

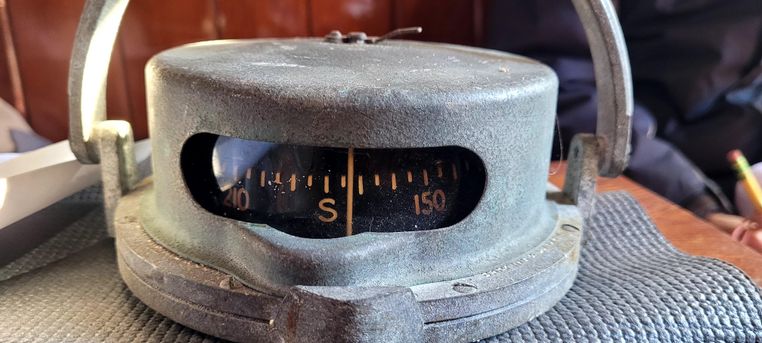

• Deck mounted compass.
• Lunenberg Foundry cast iron steering wheel, Nova Scotia.
• Lunenberg Foundry rack and pinion steering system with autopilot gear input.
• Visiball2 British radar reflector, mounted between the main and foremast, 12 mile visibility.
• Fatty Knees 8' fiberglass dinghy, restored 2022; 2 hp Evinrude outboard, 1995.

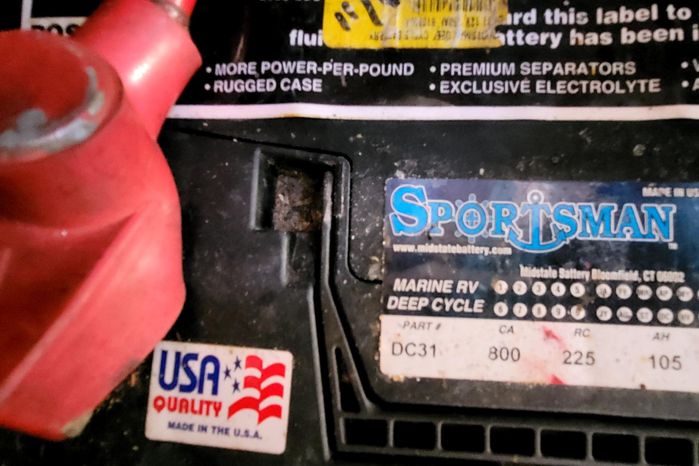

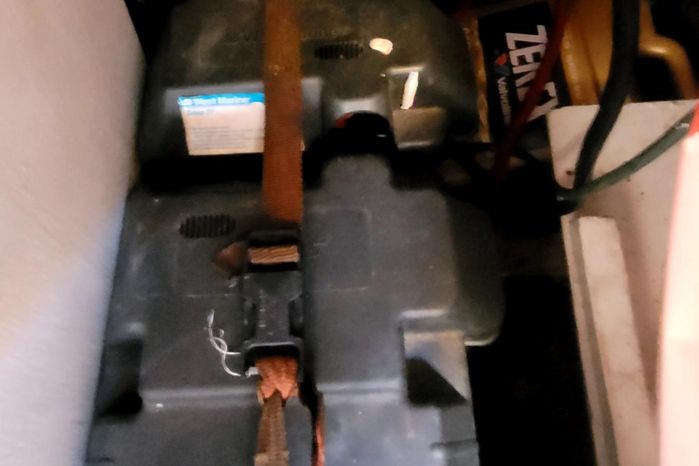

• 2-12V batteries - one 2022 lead acid and 2017 engine start lead acid.
• Sails are 10-15 years old.
• 13 gallon poly fuel tank in cockpit.
• Headroom at galley: 5'10-6'0".
• Headroom forward cabin: 5'6".

EQUIPMENT (NOT ON BOAT, BUT CONVEYS):

• Winer Sunbrella cover with wood frame.
• Complete Atkins blueprints for this Schooner design.
• Possible Hurricane Mooring in Westerly, RI (call for details).
• 30 gallon diesel tank - portside.
• 2014 Rutland 913 wind generator.
